Jackson Pro Series Signature Misha Mansoor Juggernaut HT6QM

Djent forefather and speed demon Misha Mansoor has gained widespread acclaim as the mastermind behind the axe-centric progressive metal band Periphery. He’s known to impress the most discerning of metal fans with his steadfast, fleet-fingered technique, and his personally designed collection of Jackson signature Juggernaut instruments is sure to set any shredder’s tone ablaze.

The Pro Series Signature Misha Mansoor Juggernaut HT6QM features a basswood body with an elegant quilt maple top and a bolt-on caramelized maple neck with graphite reinforcement, wrap-around heel and oiled back finish for greater playing comfort. Enjoy blazing fast leads with a 20” flat radius caramelized maple fingerboard featuring rolled edges, 24 jumbo frets and offset dot inlays. Luminous side dots will guide your way even on the darkest of stages, while the heel-mount truss rod adjustment wheel allows for convenient neck relief tweaks.

Not willing to sacrifice tone, Mansoor spent considerable time working with Jackson to develop killer-sounding uncovered direct mount Jackson MM1 pickups, which can be shaped with a five-way blade switch, single volume control and single tone control with push/pull select feature.

Available in a stage-stealing Chlorine Burst finish with matching reverse Jackson 3x3 AT-1 headstock, this axe also features a Jackson HT6 string-through-body hardtail bridge, Jackson-sealed die-cast locking tuners and black hardware.

Product Specs

General

Color                                    Chlorine Burst

Country Of Origin        ID

Orientation                 Right-Hand

Series                          Artist Signature

Neck

Fingerboard Material  Caramelized Maple

Fingerboard Radius     20" (508 mm)

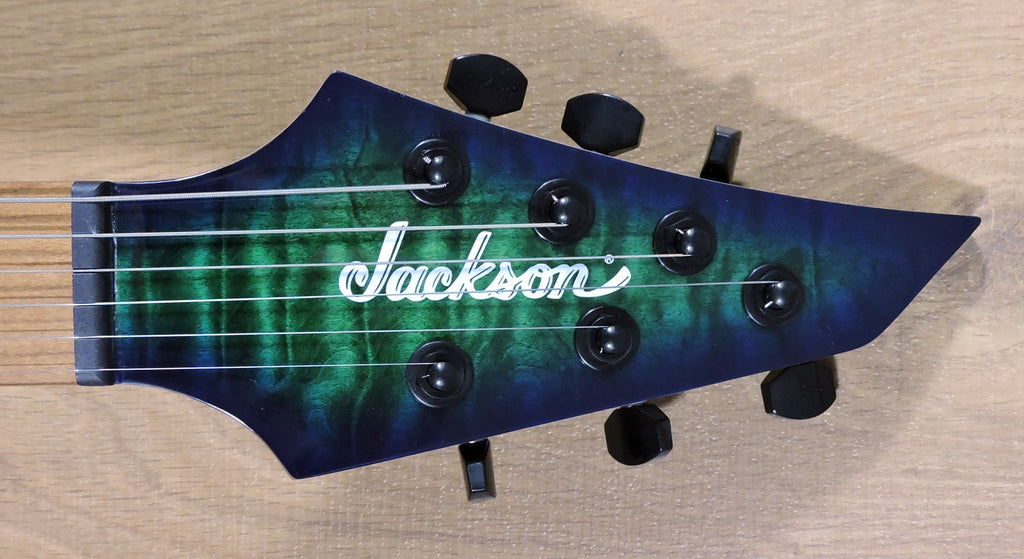

Headstock                   Reverse Jackson® AT-1 3x3 (3 Over/3 Under)

Neck Construction      Bolt-On with Graphite Reinforcement and Scarf Joint

Neck Finish                  Oiled

Neck Material              Caramelized Maple

Number of Frets          24

Nut Material                Black Plastic

Nut Width                   1.6875" (42.86 mm)

Position Inlays             Offset White Dot

String Nut                   Black Plastic

Truss Rod                    Dual-Action with Wheel

Truss Rod Nut             Heel-Mount Truss Rod Adjustment Wheel

Body

Body                           Basswood

Body Finish                 Gloss

Body Material              Basswood

Body Shape                 Juggernaut

Body Top                     Quilt Maple

Hardware

Bridge                                 Jackson® HT6 String-Through-Body Hardtail

Control Knobs             Dome-Style

Hardware Finish          Black

Neck Plate                   4-Bolt (recessed screws)

Pickguard                    None

Pickup Covers             Black

Strap Buttons              Dunlop® Dual-Locking

Strings                         Horizon Devices Strings - Progressive Tension Standard 6

Switch Tip                   Black

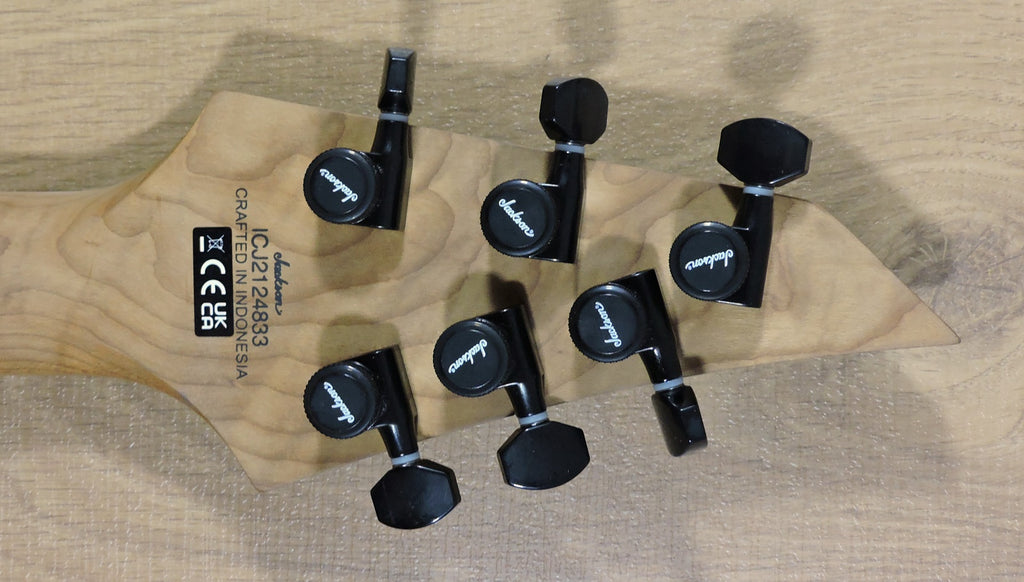

Tuning Machines         Jackson® Sealed Die-Cast Locking

Electronics

Bridge Pickup              Jackson® Uncovered MM1

Controls                      Volume, Tone (with Push/Pull Select Feature)

Neck Pickup                Jackson® Uncovered MM1

Pickup Configuration   HH

Switching

5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Two Inside Single Coils, Position 3. Both Full Humbucking Pickups, Position 4. Outer Neck Single Coil, Position 5. Full Neck Pickup
